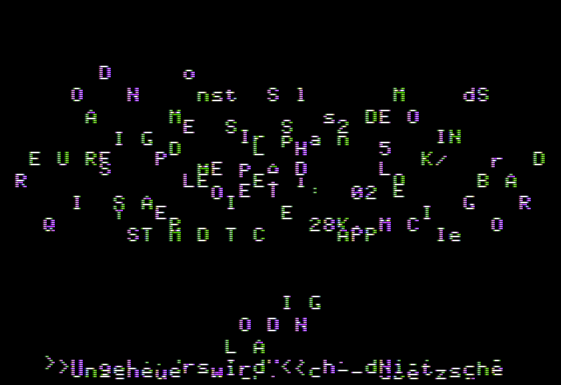

Falling Letters
|
I've always wanted to make this falling letter effect. A lot of C64 demos do fun things with the boot message text before launching into the demo proper. On the Apple II there's a bit of a giveaway because when you sneakily switch to graphics mode, the color-killer circuit turns off so the text suddenly gets purple/green fringes. It technically might be possible to avoid that by cycle-counting and flipping from text to graphics mid-screen but didn't seem worth the trouble. |
|

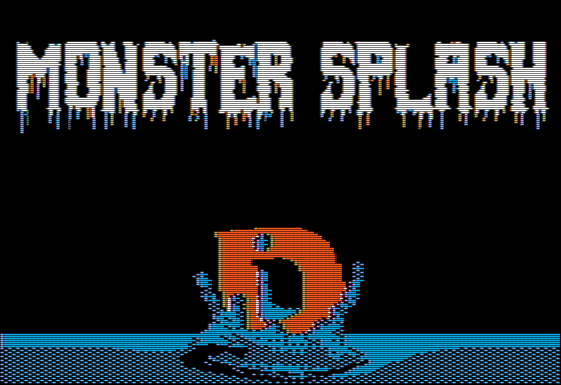

Title screen
|
This title screen is just plain hi-res, to save space. It's using
the nice free
"Fiendish Font" by Chad Savage. It's convenient
that the Demosplash logo maps fairly well to the available
hi-res colors.
There is some digitized audio here at the beginning though it's a bit hard to hear on my capture. It's a pitched-down version of me saying "Monster Splash" and it was a last-minute addition that nearly broke everything as I was trying to squeeze it in. I was trying to load it into "unused" memory that actually I had been using elsewhere and forgot about. |
Logo Screens
|
Some nice double hi-res Desire logos by Grimnir. The cool red-line wipe is by 4am. As I probably mentioned these wipes are all from the "Total Replay" 4cade package which you should look into if you haven't heard of it before. |

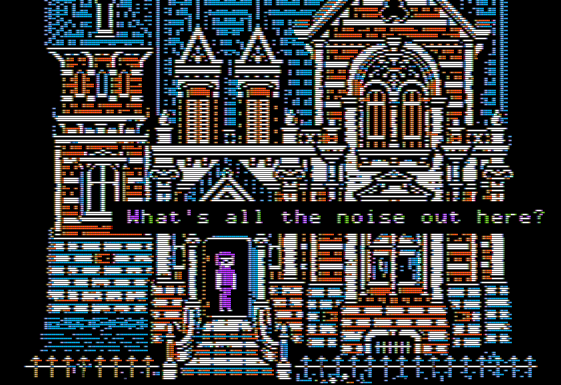

Scrolling House
|
This spooky house artwork is by The Pixel Apothecary.
It's a classy place for a peasant to live, I'm guessing that's
maybe not Rather Dashing, maybe his rich cousin.
This is regular hi-res too as it only needed four colors so dhgr would be overkill. It's twice as fast to scroll, and also a lot easier to print text in plain hi-res mode. In later scenes when you do see text in double-hires mode it's actually doing sub-pixel rendering in order to fit 40-columns across. I had to hack up my conversion utilities to handle this properly. |

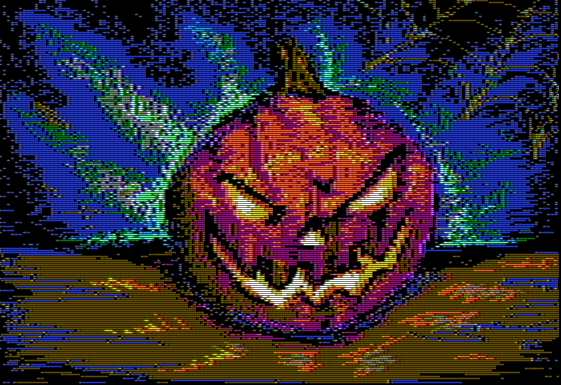

Monsters Wave1
|
Amazing monster graphics by Grimnir. The cool 48-wipe effects by 4am from the 4cade/Total Replay project. Getting these wipes to work was a huge pain, as they use the *entire* zero page (yes, all of it) so I have to back up the zero page before/after, but even then when the music is playing it wants its zero-page values, so had to make a huge hack where the interrupt handler can known a wipe is happening and temporarily copy over the zero-page values it needs. Also it wasn't obvious at first but the wipe also stomps all over pages $70 - $8F. Luckily I could restore those pages easily because as side-effect of loading the relevant values are still backed up in AUX memory. Finally the Peasantry scenes are used with permission from Videlectrix / the Brothers Chaps. |

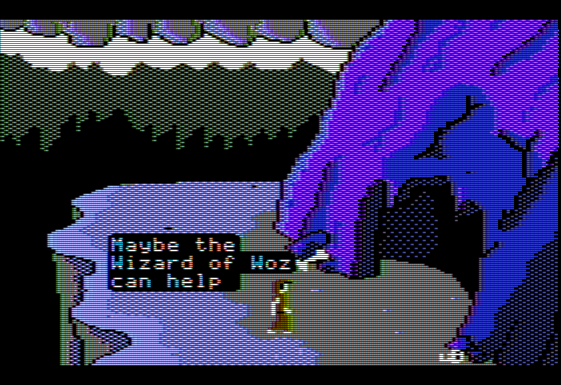

Monsters Wave2
|
In addition to more amazing monster graphics by Grimnir
the story progresses with some scenes borrowed from
the Homestar Runner "Peasant's Quest" game
(which I have a mostly completed
Apple II demake). This is what the game would look like
in double-hires, my demake is only in regular hi-res as
"good graphics" take up twice as much space and are 10 times
as complex.

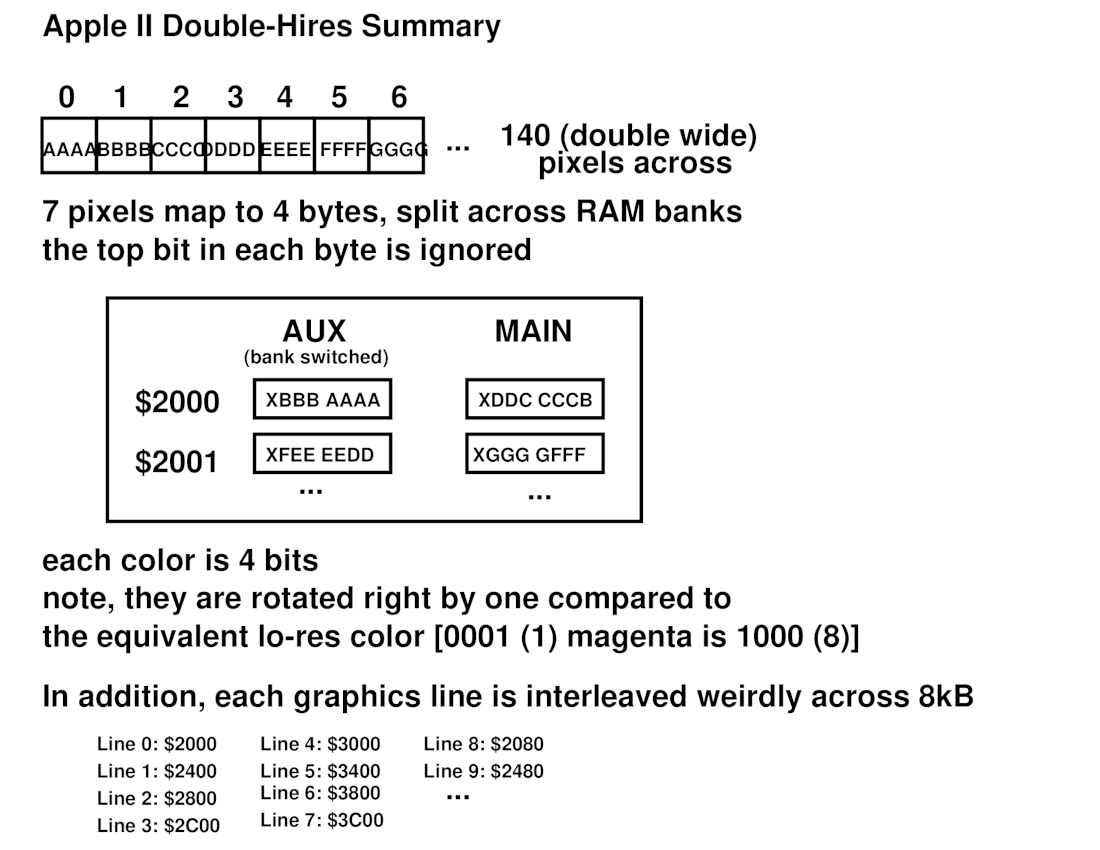

I had hoped to have a lightning animation on this screen but ran out of time and space for it. Grimnir actually made many more graphics (and more that are full color) but I wasn't able to fit them all in memory. The graphics are compressed. At first just with ZX02 compression, but I later found that the really weird Apple II double-hires doesn't compress well (it packs 7 pixels into 4 bytes in a complex way that is interleaved in banked memory, and the actual lines on the screen are also weirdly interleaved in hi-res fashion). If instead I save a raw normal bitmap with 2 colors per byte, things compress much better and I can repack to double-hires in software. This is a bit slower though and since I only have 8k of scratchpad RAM it's why some of the image decodes seem to pause halfway while decompressing the second half. I wanted to use some more of the 48-wipes here but ran out of RAM to hold things. Given more time I could have made it fit, but instead you get a fizzle wipe (also by 4am) instead. |

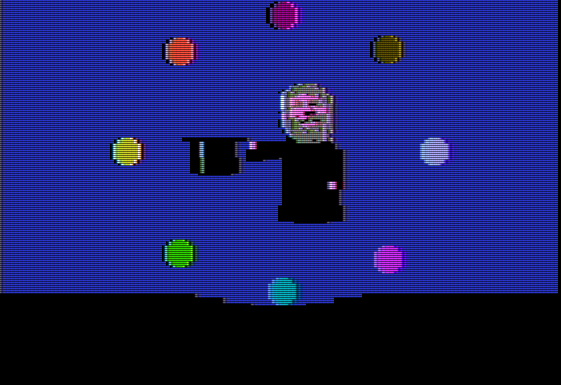

Wizard of Woz
|
This is a parody of the C64
"nine" demo by lft. I originally had
grand plans for the Apple II version.
Whizzing around sprites, transparency, maybe
the letters for the code snippet flying around, an animation of
Woz taking off his hat, maybe him riding a segway. Too complex
though, only barely have double-hires sprites going, and as we can
see since it's all in software so a bit slow.
In retrospect though I should have had at least 10 sprites, even if it was slower. I'm kicking myself for not doing that. I was low on time and generating the co-ordinates for the circle was much easier with a power of two number. |

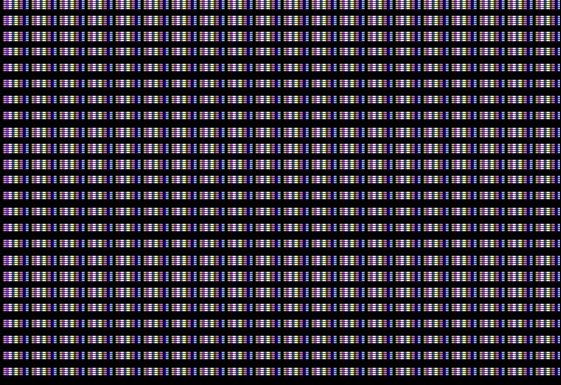

hgr8 demo
|
The code Woz zaps you with is my
8-byte hi-res demo for Apple II.
(You can read about it in more detail in the
September 2025 issue of
"Juiced.GS" magazine)
If you enter that code after a fresh boot to Applesoft BASIC it will show approximately this effect. I'm faking it here though because the effect depends on the Applesoft ROM being mapped in, but we've disabled it because we banked the ROM out to get more RAM (and also because the interrupt handler lives there as well). If you want to try it on your own Apple II/emulator, here it is again: CALL -151 B8: 2C EA 20 F4 F3 20 D8 F3 BDG |

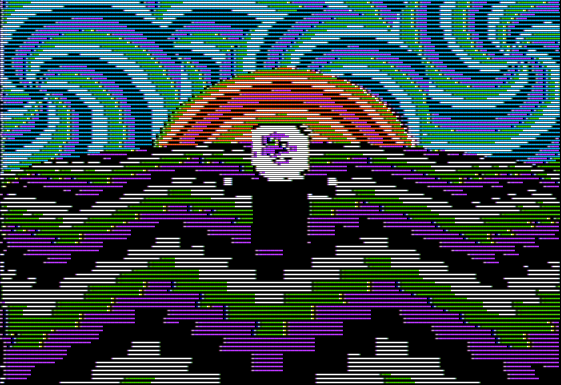

Martymation
|
This is an effect by Martin Kahn found on
"Side B" of the Apple
II PrintShop disk. It's doing some clever things to have a palette
cycling looking effect on a system that doesn't have palette cycling.
(It makes clever use of the fact that Apple II hires has 8 colors
but two of them are black and two of them are white).
The Woz overlay is a bit of a hack because I didn't have the budget to do transparency properly. |

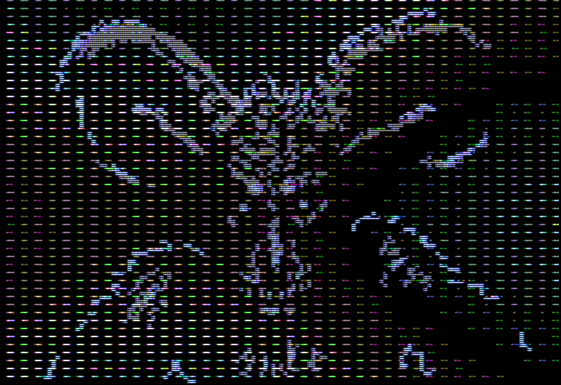

Final Monster
|
This is what started the idea for the whole project.
I had some code that could do multi-color variants of a greyscale
4-color double-hires image. This came from my
rewind2 proof of concept.
The plasma overlay was a happy accident when trying to make a double-hires plasma effect. It's a variant of the FrenchTouch "Plasmagoria" plasma but in double hires. It's actually what you get when you run the orange/blue hi-res version (from my second reality port) unchanged with double-hires enabled. Due to NTSC artifacting it gives a really nice almost iridescent look. Completely unintentional. The reason the background image is still visible too is because the plasma is only drawing every 4th row (I think it's 4th, too lazy to check right now) for speed. I was going to make a "proper" double-hires plasma but unpacking/repacking all the pixels sounded exhausting (and slow) and the alternative seems like it would have been an enormous amount of lookup tables. This particular chunk of demo has to fit in 4k so not a lot of room for something fancier. |

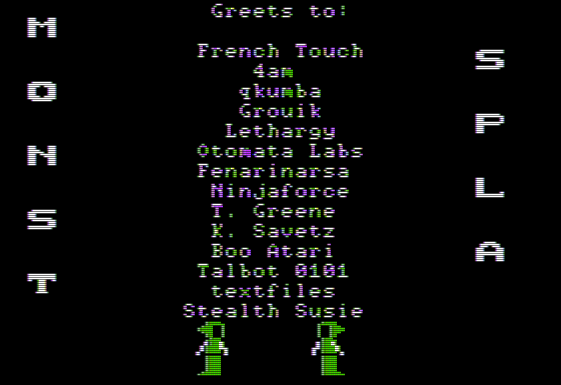

Credits
|
Re-using some vertical scroll code from previous demos, with some minor changes. Be sure to stick around for the after-credits scene! |
